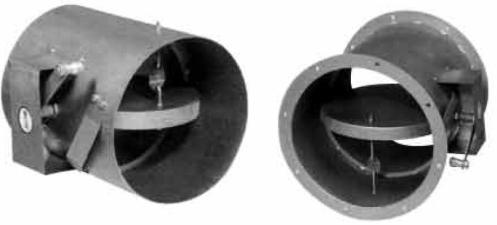

Round and Duct Type FD-R/FD-RF Fire Dampers

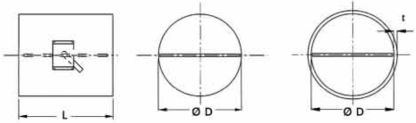

CIRCULAR DUCT TYPE FD-R FIRE DAMPERS WITHOUT FLANGES |
||||
Code |
Standart Sizes |
L |
T |
Air Flow |
ØD mm |
mm |
mm |
m³/h |
|
10400601 |
150 |
250 |
25 |
260 |
10400602 |
200 |
250 |
25 |
500 |
10400603 |
250 |
300 |
25 |
860 |
10400604 |
300 |
350 |
25 |
1.270 |
10400605 |
350 |
400 |
25 |
1.790 |
10400606 |
400 |
450 |
25 |
2.400 |
10400607 |
600 |
650 |
35 |
5.600 |
10400608 |
800 |
850 |
35 |
10.200 |
10400609 |
900 |
950 |
40 |
13.000 |
10400610 |
1.000 |
1.050 |
40 |
16.000 |
|
||||
CIRCULAR DUCT TYPE FD-RF FIRE DAMPERS WITH FLANGES |
||||
Code |
Standart Sizes |
L |
T |
Air Flow |
ØD mm |
mm |
mm |
m3/h |
|
10401601 |
150 |
250 |
25 |
260 |
10401602 |
200 |
250 |
25 |
500 |
10401603 |
250 |
300 |
25 |
860 |
10401604 |
300 |
350 |
25 |
1.270 |
10401605 |
350 |
400 |
25 |
1.790 |
10401606 |
400 |
450 |
25 |
2.400 |
10401607 |
600 |
650 |
35 |
5.600 |
10401608 |
800 |
850 |
35 |
10.200 |
10401609 |
900 |
950 |
40 |
13.000 |
10401610 |
1.000 |
1.050 |
40 |
16.000 |
INSTALLATION DETAILS OF FIRE DAMPER
a

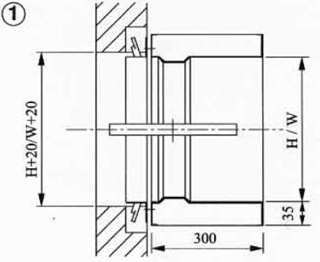

1. Wall or floor mounting with frame

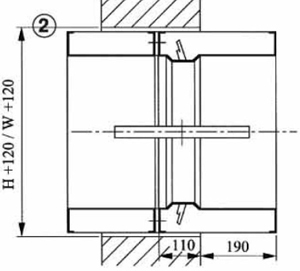

2. Into the wall or floor with supplementary frame

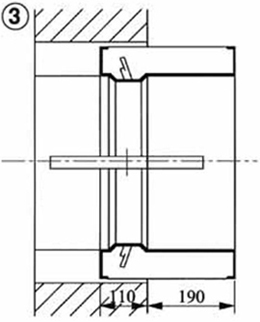

3. Inside wall or floor
4. Inside wall or floor directly fitted to duct
